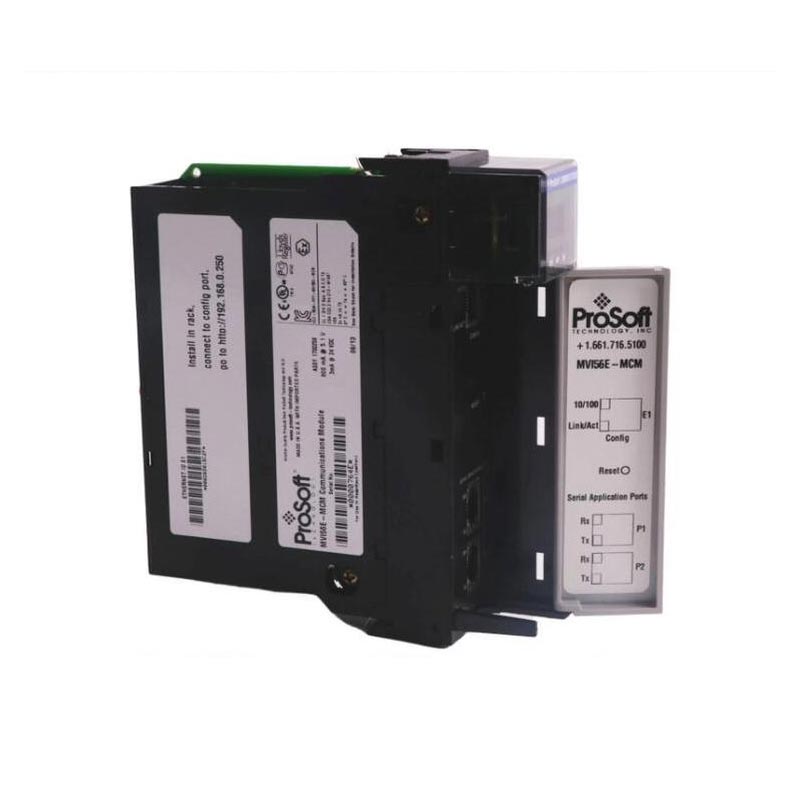

Prosoft MVI56E-MCM

Yueyang Tongtu is a professional industrial control component supplier in China, supplying brand-new, original and fully stocked ProSoft MVI56E-MCM Modbus communication interface modules. Fully adapted to the Rockwell 1756 ControlLogix backplane architecture, the module solves common communication compatibility problems of multi-brand and multi-protocol devices on industrial sites, realizing efficient and stable data transmission between main control systems, on-site instruments and execution equipment. Adhering to strict quality control standards, all modules maintain original factory performance and can operate stably in long-term process industry and intelligent manufacturing automation scenarios.

Core Advantages

1. Independent communication operation: The module adopts a high-performance dedicated communication processor running separately from the main PLC CPU. It completes serial data packaging, unpacking and protocol conversion independently. It will not occupy main controller resources and avoids control logic scan cycle delay caused by field data acquisition.

2. Isolation anti-interference design: Two fully electrically isolated serial-port drive circuits are integrated inside. It blocks lightning surge, ground-loop interference and short-circuit impact introduced by long-distance field communication lines. It protects ControlLogix backplane and core control hardware and improves overall system safety and fault tolerance.

3. Multi-protocol and multi-mode compatibility: It supports mainstream industrial protocols including Modbus RTU, Modbus ASCII, DF1 and ASCII. Master and slave modes are configurable. It matches multiple industrial network specifications and fits star-shaped and ring network topologies to satisfy diverse on-site networking requirements.

4. Wide baud rate adaptability: It covers transmission rates from 300 bps to 115.2 kbps. It fits different communication speed requirements of low-speed sensors, high-speed smart instruments and frequency-conversion equipment for flexible data matching across industrial conditions.

5. Simple deployment and configuration: It supports direct insertion into 1756 ControlLogix rack without extra gateway cabinets. Dual configuration modes including Add-On Instruction (AOI) and web configuration reduce field debugging difficulty and shorten project deployment cycles.

Product Parameters

Structural Features

1. Compact rack-mount structure: ProSoft MVI56E-MCM adopts single-slot compact form factor complying with 1756 ControlLogix rack standards for seamless integration with main control hardware. It saves cabinet space and optimizes cabinet layout for space-limited installation environments.

2. Independent chip processing architecture: Dedicated communication processor handles all protocol conversion, data receiving-sending and data parsing work. Main PLC CPU only focuses on logic control tasks. Separation of control and communication prevents communication workload from consuming main controller resources and improves overall system efficiency.

3. Reinforced circuit protection: Integrated isolation circuit prevents external power fluctuation, line interference and short-circuit faults from spreading to main control backplane. Even when field communication lines malfunction, core control system remains protected to reduce failure rate and production downtime losses.

Application Scenarios

1. Process industry control: Widely deployed in petroleum, chemical, power generation, papermaking and pharmaceutical sectors. It collects real-time data from pressure, flow and temperature transmitters and feeds data back to ControlLogix controllers for automatic process adjustment and equipment safety monitoring.

2. Environmental protection & water treatment: Working as Modbus master station, it connects pumping-station hardware and monitoring instruments inside water-treatment facilities. It realizes centralized data collection and remote management for automatic operation and visual data monitoring of water-treatment systems.

3. Intelligent manufacturing production lines: Suitable for 3C processing, machinery manufacturing and automotive assembly lines. It connects inverters, temperature controllers, weighing modules and testing devices. It builds stable data links between field equipment and main control systems to optimize production workflows.

4. Energy monitoring system: Connects smart meters, power distribution units and energy-monitoring instruments. It completes real-time collection and statistics of energy consumption data for factories and industrial parks to support intelligent energy management and energy-saving operations.

Product Comparison

Supply Assurance

1. Ample spot inventory: Yueyang Tongtu maintains large stock of new industrial-control spare parts including ProSoft MVI56E-MCM. Spot stock supports single-unit order and bulk procurement to meet urgent project delivery requirements.

2. Global supply capacity: Company products are exported to over xx countries and regions. Stable international logistics channels provide safe cross-border delivery services to guarantee on-time project execution worldwide.

3. Strict quality control: All supplied modules are original genuine units passing professional performance testing. Complete supplier evaluation and quality-inspection mechanisms ensure consistent product performance and long-term operational reliability.

4. Comprehensive service support: Pre-sales model matching and solution consultation, mid-project technical coordination and after-sales debugging guidance are available. Multiple international trade terms including FOB, CIF and DDP are supported for different cooperation requirements.

FAQ

Q1: What is the core function of ProSoft MVI56E-MCM module?

A1: It implements protocol conversion and data transmission between Rockwell ControlLogix main control system and Modbus-based field devices, building communication links for stable interworking of automation hardware.

Q2: Does this module support fast and simple deployment?

A2: It supports direct rack-mount installation without extra gateway cabinets. Installation and system access are fast to shorten on-site construction and debugging cycles.

Q3: What anti-interference performance does the module offer?

A3: Dual fully electrically isolated serial ports resist lightning surge and ground-loop interference. It protects main control systems and improves overall equipment stability.

Q4: Which industrial scenarios fit this module?

A4: It is widely used in chemical, power, water-treatment, machinery manufacturing, energy monitoring, pharmaceutical and papermaking automation projects.

Q5: What configuration options are supported by the module?

A5: Two configuration approaches are available: Add-On Instruction programming configuration and web-based online configuration for flexible engineering debugging.

Q6: Are supplied products original and available from stock?

A6: Modules offered by Yueyang Tongtu are genuine original products with sufficient spot inventory, supporting global shipment and bulk-order supply.
