Honeywell MC-TDOY22

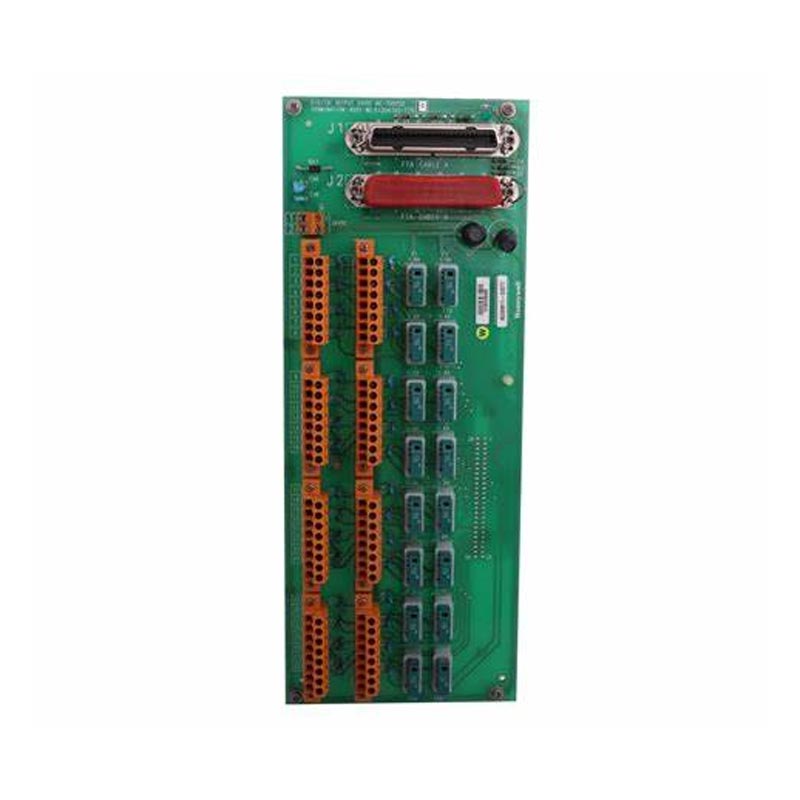

Yueyang Tongtu supplies Honeywell MC-TDOY22, part number 51204162-175, a 32-channel Digital Output Field Termination Assembly (FTA) used with Honeywell distributed control system I/O configurations. It provides the field-side interface between the compatible I/O processor and digital field devices, including solenoid valves, relays, indicators, alarms, and other on/off actuators.

The assembly provides 32 isolated digital output channels, with each channel supporting loads up to 500 mA at 24 V DC within a 15–30 V DC load voltage range. Its output drivers are optically isolated from the PM/APM/HPM common, while the conformal-coated design provides additional protection for electronic components in demanding industrial environments.

For maintenance and replacement projects, accurate model and part-number identification is important. Yueyang Tongtu supports sourcing for Honeywell DCS modules, including discontinued and hard-to-find automation spare parts, with product availability, condition, quantity, and delivery requirements confirmed according to the specific order.

Product Specifications

Model	MC-TDOY22 Honeywell
Structure	Modular
LD Instruction Processor	Hard PLC
Power	60W
Input	4-20mA, 1-5V, and 0-5V
Voltage	24V DC
Weight	2kg

What Is Honeywell MC-TDOY22?

The Honeywell MC-TDOY22 is a Digital Output Field Termination Assembly designed to connect a compatible I/O processor with field-side digital loads. In a distributed control system, the FTA provides the physical termination and signal interface required to transfer on/off control commands to connected field devices.

The assembly provides 32 isolated digital output channels. Each channel can support loads up to 500 mA at 24 V DC within the specified 15–30 V DC load voltage range. Optical isolation between the output circuits and PM/APM/HPM common helps separate field-side electrical conditions from the controller-side circuitry.

The conformal-coated construction is also suited to industrial environments where electronic assemblies may be exposed to moisture, contamination, or other environmental stresses. For system maintenance, the module should be evaluated together with its associated I/O processor and the existing Honeywell control-system configuration.

Compatible Honeywell I/O Systems

This FTA is associated with Honeywell TDC 3000 / TPS Process Manager I/O configurations and Experion PKS Series C (C300) systems when used with the specified MU-PDOY22 or MC-PDOY22 I/O processor.

For replacement projects, compatibility should be confirmed from the existing system configuration rather than from the FTA model alone. The original part number, associated I/O processor, system platform, terminal configuration, and installation requirements should be checked before ordering.

For older Honeywell control systems, exact part-number identification is particularly useful because maintenance projects may involve discontinued modules or equipment that has been operating in the field for many years.

Key Technical Features

32-Channel Digital Output

The assembly provides 32 digital output channels in a Size-B FTA configuration, allowing multiple field devices to be connected through a single termination assembly.

Optical Isolation

The output drivers are optically isolated from PM/APM/HPM common. This separation helps reduce the effect of electrical disturbances between field-side circuits and the control-system side.

One-on-One I/O Redundancy

The module supports one-on-one I/O redundancy for control-system configurations where continued operation and replacement flexibility are important.

Conformal-Coated Construction

The conformal-coated version provides an additional protective layer over the electronic assembly, supporting use in demanding industrial environments where moisture and contamination may be concerns.

Field Wiring Options

Compression-type terminals are used for field connections, with screw-type configurations available for applicable FTA arrangements. The terminal configuration should be confirmed against the existing installation when selecting a replacement.

System Integration

The assembly is designed to work with the specified MU-PDOY22 / MC-PDOY22 I/O processors and corresponding Honeywell control-system configurations. Confirming the processor and system platform is therefore an important part of replacement identification.

Application Scenarios

Solenoid Valves

Digital outputs can be used to switch solenoid valves in process control applications, including chemical, petrochemical, refining, and other automated production systems.

Relays and Contactors

The outputs can provide switching signals for relays, contactors, motor-control circuits, and other field devices that require digital on/off control.

Indicators and Signal Lamps

Digital output channels can control status indicators, pilot lights, and alarm annunciation devices used to communicate equipment or process conditions.

Horns and Alarms

The assembly can be used for digital alarm signaling in industrial control systems where audible or visual notification is required.

Industrial Actuators

Digital outputs can also control other on/off field actuators used in automated production, process handling, and equipment control systems.

Replacement and Sourcing Information

When replacing an existing Honeywell FTA, matching the general product type is not sufficient. The original model, complete part number, associated I/O processor, system platform, terminal configuration, and environmental requirements should be checked before an order is placed.

For 51204162-175, customers can provide the original equipment information together with the required quantity, product condition requirements, and delivery destination. This allows Yueyang Tongtu to check the available supply and determine whether the specified component matches the stated requirements.

This sourcing process is particularly useful for older DCS installations, discontinued control-system hardware, system maintenance projects, and applications where an exact replacement part is required.

Compliance and Protection

The -175 version is identified as the CE-compliant variant. The conformal-coated construction provides additional protection for the electronic assembly in industrial operating environments.

Optical isolation between the output circuitry and PM/APM/HPM common also provides electrical separation between the field-side output circuits and the associated control-system circuitry. Installation and wiring should follow the applicable Honeywell documentation and electrical requirements for the specific control-system configuration.

Frequently Asked Questions

What is MC-TDOY22 used for?

It is a Digital Output Field Termination Assembly used to provide the field-side interface between a compatible Honeywell I/O processor and digital field devices.

Which I/O processor is compatible with this FTA?

The specified I/O processors are MU-PDOY22 and MC-PDOY22. The processor and FTA should be checked together when confirming system compatibility.

Is it compatible with TDC 3000 and Experion PKS C300?

The assembly is used with Honeywell TDC 3000 / TPS Process Manager I/O configurations and Experion PKS Series C (C300) systems when paired with the appropriate I/O processor and system configuration.

How many output channels does it provide?

The assembly provides 32 isolated digital output channels. Each channel supports loads up to 500 mA at 24 V DC within the specified 15–30 V DC load voltage range.

What information should I provide when ordering a replacement?

Provide the complete part number, required quantity, product condition requirements, existing system or I/O processor information, and delivery destination. A photograph of the original module label can also help with product identification.

Why Source from Yueyang Tongtu?

20+ Years of Experience

Experience in industrial automation product sourcing and international supply.

Multi-Brand Inventory

Coverage of Honeywell and other major industrial automation brands.

Model Identification Support

Assistance with checking model numbers, part numbers, system information, and replacement requirements.

Automation Spare Parts

Sourcing support for current, discontinued, and hard-to-find DCS and PLC components.

International Delivery

Delivery arrangements can be coordinated according to quantity, destination, and project requirements.

Request a Quote

For Honeywell MC-TDOY22 51204162-175, send us the required quantity, product condition requirements, delivery destination, and available system or I/O processor information. Yueyang Tongtu can check product availability and provide sourcing and delivery information based on the confirmed requirements.
