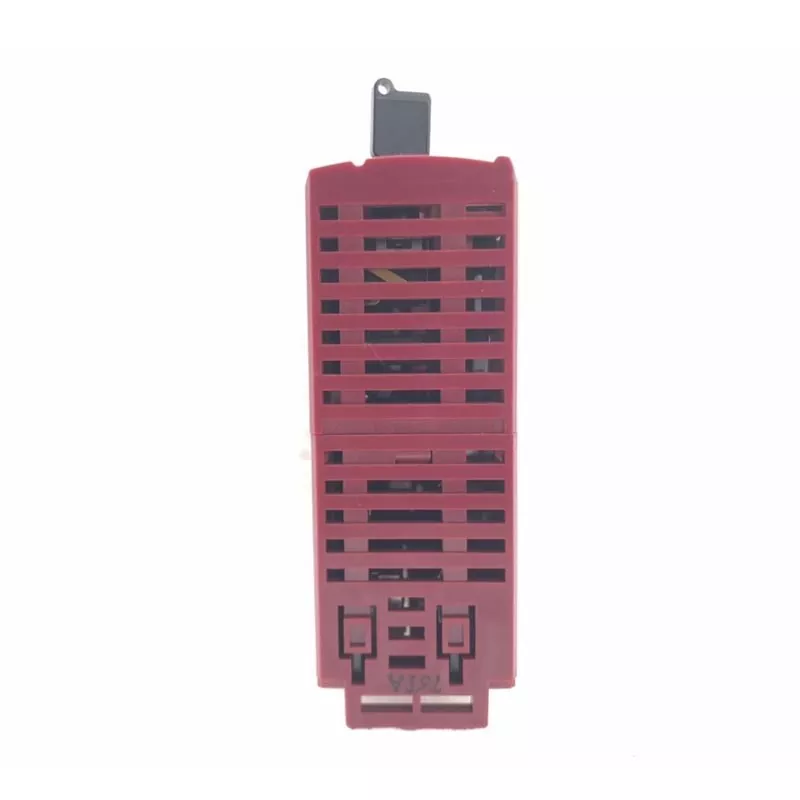

Fuji NP1PS-74R

The Fuji NP1PS-74R is not an ordinary I/O expansion module; rather, it is a core computing and control unit within the PLC system, featuring high-speed instruction processing capabilities and ease of programming and maintenance.

Key Features

1. High-Performance Computing

The Fuji NP1PS-74R utilizes a proprietary 32-bit processor, delivering microsecond-level basic instruction execution speeds capable of handling complex logic calculations and multi-axis motion control.

2. Large-Capacity Storage and Expansion

It offers a program storage capacity of 74K steps and supports the expansion of various analog, digital, and specialized function modules via the SX high-speed bus.

3. High Reliability and Redundant Architecture

Designed for harsh industrial environments, the module features robust interference immunity. It supports dual-CPU and dual-power supply redundancy configurations, ensuring uninterrupted operation for critical production lines.

4. Seamless Network Integration

It supports seamless connectivity—either onboard or via expansion modules—with mainstream industrial fieldbuses such as Ethernet, Profibus-DP, DeviceNet, and SX-Net.

5. Convenient Diagnostics and Maintenance

Equipped with onboard RUN/ERR/BAT status indicators, the module enables rapid on-site fault diagnosis and online program monitoring when used with dedicated development software.

Key Application Scenarios

• Discrete Manufacturing: The Fuji NP1PS-74R controls standalone equipment, automated production lines, and assembly processes, making it suitable for production lines in industries such as automotive, electronics, and food & beverage.
• Process Control: It monitors and regulates process variables, such as temperature, pressure, and flow, in real-time, making it ideal for continuous production processes in sectors like chemicals, pharmaceuticals, and water treatment.
• Motion and Machine Control: With a basic instruction processing speed of 20 nanoseconds and powerful sequential processing capabilities, it is well-suited for equipment requiring high-precision motion control, such as CNC machine tools, packaging machinery, and printing equipment.
• Building Automation: It controls building systems, including HVAC, lighting, and security, enabling centralized monitoring and energy-efficient management.
• Monitoring Applications: Serving as the core of SCADA (Supervisory Control and Data Acquisition) systems, it collects data from field equipment and transmits it to management-level systems.

What Equipment Can the Fuji NP1PS-74R Be Used With?

Applicable Equipment

• Automated production lines
• Automatic assembly machines
• Packaging machinery
• Conveying equipment
• Machining equipment
• Automatic inspection equipment
• Material handling equipment
• Pump station equipment
• Fan/blower equipment
• Water treatment equipment
• Industrial heating equipment
• OEM specialized equipment
• Legacy PLC systems

Typical Control Tasks

• Sequential control, interlocking control
• Workstation coordination, actuator control
• Feeding, positioning, packaging, conveying
• Motor start/stop, material detection
• Equipment operation and auxiliary control
• Signal acquisition, logic processing
• Conveying, sorting, positioning
• Pump unit start/stop and status monitoring
• Start/stop, interlocking, and status control
• Pump, valve, and field signal control
• Temperature and sequential control
• Equipment logic and I/O control
• CPU replacement and maintenance spares

Installation and Usage Recommendations

1. Cabinet Environment Control

Maintain an ambient temperature of 0-55°C and humidity below 85% RH (non-condensing).

Keep the interior of the control cabinet clean; prevent the ingress of metal dust, corrosive gases, and oil contaminants.

2. Electrical and Interference Prevention Standards

Do not plug or unplug CPU or backplane modules while the power is on; the system's main power must be disconnected before replacing hardware. The backplane FG terminal must be reliably grounded at a single point (grounding resistance < 100Ω).

Route PLC 24V DC control lines and communication cables in separate conduits or trays from 220V/380V high-voltage power cables, maintaining a separation distance of at least 100mm.

3. Program Protection and Battery Maintenance

If the BAT indicator lights up, the backup battery level is low. The battery must be replaced while the system is powered on. Removing the battery while the power is off may result in the loss of programs stored in the internal RAM. Regularly back up programs and data area snapshots using the programming software.

Common Faults and Solutions

Ordering Checklist

1. Full Model Number and Suffix: Verify that the input voltage, output specifications, and interface type are compatible with your on-site cabinet.
2. System Compatibility: Confirm the NP1 / MICREX-5X rack and CPU models to avoid power capacity mismatches.
3. Load Calculation: Provide your current I/O configuration, and Yueyang Tongtu will help determine if the capacity is sufficient.
4. Lead Time and Stock: We have stock available; simply provide the model number to receive an immediate quote and delivery schedule.
5. Price and Payment: Competitive factory pricing with room for negotiation on bulk orders; Cash on Delivery (COD) service is supported.
