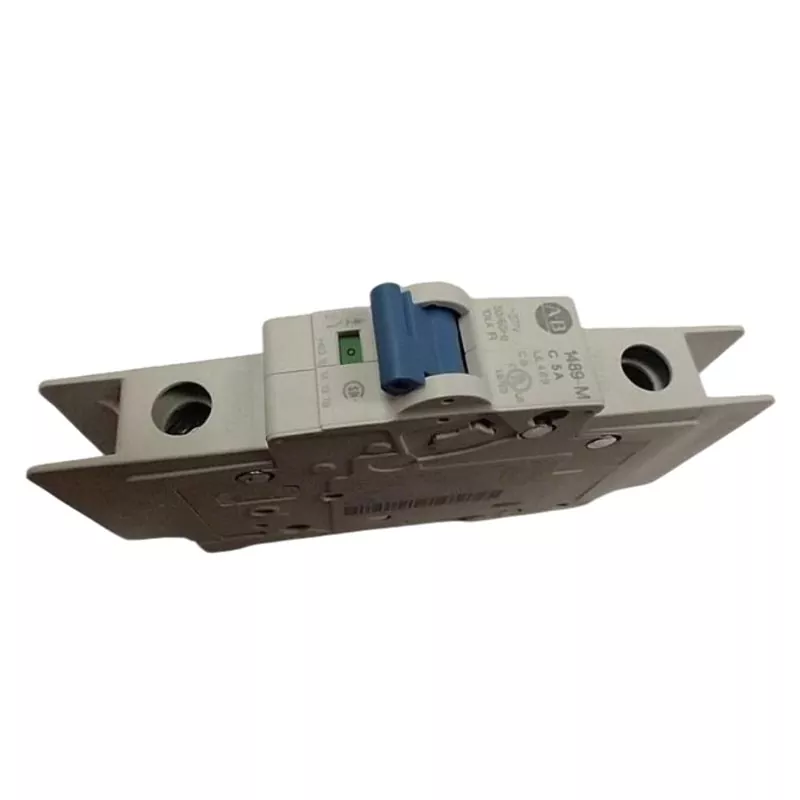

Allen-Bradley 1489-M1C050 is supplied by Yueyang Tongtu as part of its industrial automation product range. Yueyang Tongtu has more than 20 years of experience in industrial control automation products and works with imported automation brands including Allen-Bradley. This model is designed for low-voltage three-phase AC motor circuits and supports direct-on-line starting applications where frequent start-stop operation is not required.
1. Motor starting tolerance: The trip curve can tolerate several times the rated motor c阿urrent during normal starting surges, helping reduce unnecessary tripping during motor startup.
2. Dual protection: Thermal protection responds to sustained overload conditions, while magnetic protection provides rapid interruption when a short circuit occurs.
3. Temperature compensation: The overload trip threshold is based on a 40°C environmental temperature reference, helping maintain suitable protection behavior as cabinet temperature changes.
4. Manual isolation: The toggle switch can disconnect the circuit and provide a power isolation point during equipment maintenance or repair.
|
Product Series |
1489-M Series |
|
Rated Current |
5.0A |
|
Poles |
3 poles (3P) |
|
Rated Voltage |
600V AC Maximum |
|
Rated Frequency |
50/60 Hz |
|
Maximum Short-Circuit Breaking Capacity |
240V AC: 65 kA |
|
Protection Grade |
IP20 |
Allen-Bradley 1489-M1C050 can be applied to compact motor circuits in CNC equipment, including coolant pumps, micro lubrication pumps and chip removal machines.
Small belts and chain-type lifting mechanisms used in material conveying equipment can use this type of motor protection for three-phase AC motor circuits.
Fan coils and air supply or exhaust equipment are suitable applications where compact motor circuit protection is required.
Lightweight centrifugal pumps, dosing pumps and air compressor units can use the device in motor protection circuits for fluid engineering equipment.
Micro mixers and conveyor belts used in packaging and food processing machinery are also suitable for this type of compact motor protection device.
The main difference between this model and an ordinary miniature circuit breaker is the intended circuit application. Motor protection devices use trip characteristics suited to motor starting and operating conditions, while standard miniature circuit breakers are mainly designed for general power distribution circuits.
|
Item |
Allen-Bradley 1489-M1C050 |
Ordinary Miniature Circuit Breaker |
|
Main Application |
Low-voltage three-phase AC motor circuits |
General power distribution circuits |
|
Trip Characteristics |
Designed for motor operating conditions |
Designed for general electrical loads |
|
Motor Starting Current |
Can tolerate several times rated current during normal startup |
Not specifically designed around motor starting characteristics |
|
Overload Protection |
Thermal protection for motor circuits |
General circuit overload protection |
|
Short-Circuit Protection |
Magnetic protection with rapid interruption |
Short-circuit protection |
|
Manual Isolation |
Available through the toggle switch |
Available depending on breaker design |
1. Industrial automation experience: Yueyang Tongtu has more than 20 years of experience in industrial control automation products.
2. Product categories: The company's product range includes PLC, DCS, HMI, industrial control communication converters, remote I/O modules and related automation components.
3. Brand coverage: Its imported automation product range includes Allen-Bradley, Siemens, ABB, Honeywell, GE Fanuc, Schneider, Yokogawa and other industrial automation brands.
4. Industry applications: Products are used across CNC machinery, metallurgy, petroleum and natural gas, chemical engineering, paper and printing, textile, mechanical manufacturing, electronics, automotive manufacturing, power and water treatment applications.
5. Market coverage: Yueyang Tongtu serves domestic markets as well as overseas markets including North America, Europe and Southeast Asia.
Yueyang Tongtu provides industrial automation components for different control and equipment applications. For motor protection circuits, the 1489-M Series can be selected according to rated current, voltage, pole configuration and the operating requirements of the connected motor.
Detailed installation manuals are provided for applicable products and systems to support proper installation and operation.
The device combines thermal overload protection with magnetic short-circuit protection.
Yes. The toggle switch can disconnect the circuit and provide a manual isolation point during maintenance or repair.
The MOQ is XX. The actual order quantity can be confirmed according to the current stock and order requirements.
The delivery time is 3–4 days, subject to product availability and order requirements.
The payment terms are XX. Please confirm the applicable payment method and terms when placing the order.
