Foxboro FBM218 P0922VW

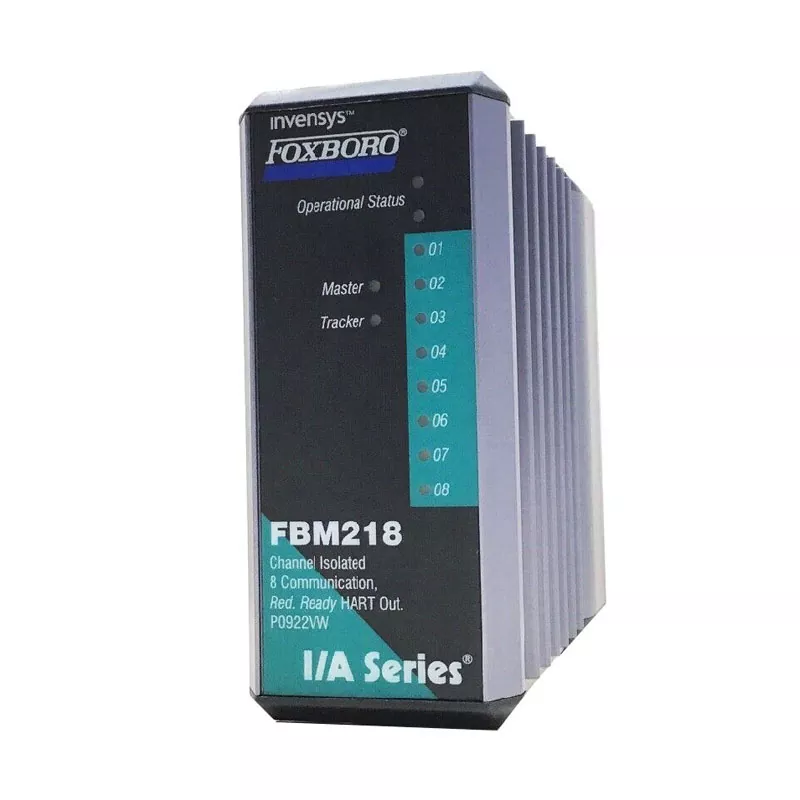

Yueyang Tongtu supplies the Foxboro FBM218 P0922VW to streamline digital field device integration within Foxboro DCS architectures. Designed as a redundant or single-head H1 interface, it routes process variables, status diagnostics, and device configuration data between H1 field instruments and the field control processor (FCP) over a single twisted-pair cable structure.

Key Technical Capabilities

• FOUNDATION Fieldbus H1 Standard Compliance: Foxboro FBM218 P0922VW adheres to the IEC 61158-2 physical layer standard, operating at a 31.25 kbit/s communication rate
• 8-Channel Field Interface Capacity: Supports multi-drop topology, allowing connection of multiple H1 intelligent field instruments per segment depending on field power consumption and cable length.
• Bus Signal Line Diagnostics: Continuously monitors fieldbus voltage levels, signal attenuation, and bus communication errors to identify cable degradation before signal loss occurs.
• I/A Series Backplane Integration: Plugs into standard Foxboro Baseplates (200 Series) for direct power distribution and high-speed HDLC communication with the control processor.
• Hazardous Area Compatibility: Supports intrinsically safe (IS) field wiring topologies when paired with appropriate fieldbus power supplies and barriers.

Technical Specifications

System Architecture & Wiring Guidelines

Baseplate & Power Module Selection

Ensure the Foxboro FBM218 P0922VW is installed on a compatible 200 Series baseplate (e.g., P0926KE or P0926HM) with a redundant power supply configuration.

Segment Terminator Configuration

Each H1 fieldbus segment requires exactly two fieldbus terminators (one at the power conditioner/module end, one at the furthest field device) to prevent signal reflections.

Cable Separation Standards

Use shielded twisted-pair cable (Type A fieldbus cable, 0.8mm² / AWG18). Route communication wiring in separate cable trays away from high-voltage AC lines by a minimum distance of 100mm.

Quality Assurance Services

Yueyang Tongtu specializes in sourcing and supplying industrial automation components from Foxboro, Allen Bradley, Siemens and other automation platforms for plant maintenance and system integration projects.

• Physical & Hardware Verification: Model numbers, serial numbers, and hardware revision letters (P0922VW) are verified prior to shipment. Connectors, guide rails, and PCB housing undergo physical inspection.
• ESD Protective Packaging: All units are shipped in anti-static ESD bags with custom foam impact protection for secure international transport.
• Commercial Support & Quotations: Stock availability, formal price quotes, datasets, and bulk procurement options are provided upon direct request to Yueyang Tongtu.
• Payment & Delivery Options: International express shipping is managed through DHL, FedEx, and UPS. Cash on Delivery (COD) terms are available via designated logistics agents.
