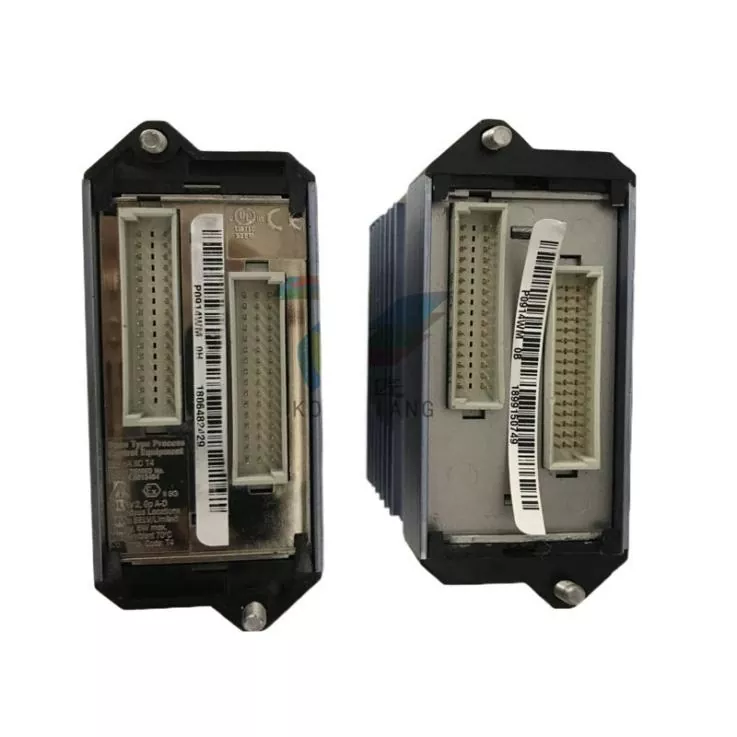

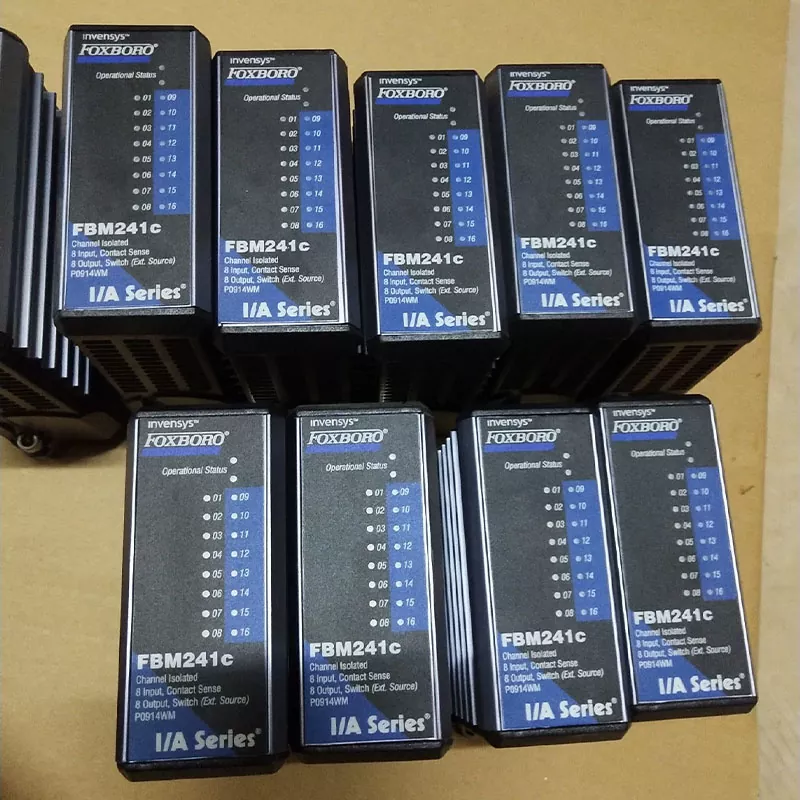

The Foxboro FBM241C P0914WM combines discrete signal monitoring and output control in a single channel-isolated I/O module, making it suitable for maintaining compatible Foxboro I/A Series control systems. For maintenance teams, system integrators, and industrial users, it can serve as a practical replacement or spare component for existing Foxboro installations.
The Foxboro FBM241C P0914WM provides eight contact-sensing input channels. Each channel can detect an open or closed contact state and uses a 24 VDC contact-wetting circuit.
The input characteristics include:
Eight discrete output channels are provided for switching externally sourced loads.
The output specification includes:
The actual load and termination arrangement should be checked against the system configuration before installation.
The I/O channels are electrically isolated from each other and from ground. This configuration helps separate field circuits and can reduce the effect of electrical differences between connected field devices.
The isolation characteristics are part of the module's design and should be considered when integrating it into an existing control system.
The module supports configurable filter or debounce times of 0, 4, 8, 16, or 32 ms.
This allows the input response to be configured according to the characteristics of connected field contacts and helps avoid unwanted signal changes caused by contact bounce or short-duration disturbances.
The Foxboro FBM241C P0914WM operates between the control system and connected discrete field devices.
On the input side, field contacts provide open or closed states that are detected by the module's contact-sensing circuits. These states are processed as discrete input signals for the control system.
On the output side, the module receives discrete control commands and switches an externally supplied electrical load through the appropriate output channel.
This arrangement allows the module to handle both field signal monitoring and discrete output control within the same I/O unit.
| Item | Specification |
| Brand | Foxboro |
| Model | FBM241C |
| Part Number | P0914WM |
| Product Type | Channel-Isolated Discrete I/O Module |
| System | Foxboro I/A Series |
| Input Channels | 8 |
| Output Channels | 8 |
| Input Type | Contact Sense |
| Contact Wetting | 24 VDC ±15% |
| Output Type | Externally Sourced Discrete Output |
| Maximum Applied Output Voltage | 60 VDC |
| Maximum Load Current | 2 A |
| Filter / Debounce Time | 0, 4, 8, 16, or 32 ms |
| Module Dimensions | 102 × 45 × 104 mm |
| Approx. Weight | 284 g |
| Mounting | Modular Baseplate |
| Supply Type | Automation Spare Part |
The module dimensions and mounting information are based on the Foxboro FBM241/b/c/d technical documentation.
The Foxboro FBM241C P0914WM belongs to the Foxboro I/A Series Compact 200 family of discrete I/O modules.
It is designed to work with compatible system components, including the appropriate modular baseplate, termination assembly, and termination cable. The exact termination arrangement depends on the required input and output configuration.
Before ordering a replacement unit, customers should verify:
Foxboro documentation identifies P0914WM as the part number associated with FBM241c.
The module is intended for industrial control systems that require discrete field signal monitoring and switching.
Typical applications include:
Its combination of discrete inputs and outputs makes it suitable for applications where field contact monitoring and discrete control signals are required within the same system.
The Foxboro FBM241C P0914WM is a channel-isolated discrete I/O module with 8 input channels and 8 output channels for compatible Foxboro control systems.
It provides 8 discrete input channels and 8 discrete output channels.
The input channels use contact sensing with 24 VDC contact wetting. They are designed to detect open and closed contact states.
The externally sourced discrete outputs support up to 60 VDC applied voltage and up to 2 A load current, subject to the applicable termination configuration and system requirements.
Yes. The module provides channel isolation between the I/O channels and between the channels and ground.
P0914WM is the part number associated with the Foxboro FBM241C module. Foxboro documentation lists FBM241c with part number P0914WM.
