The ICS Triplex T9432 from Yueyang Tongtu functions as the field sensing node within the Trusted® or AADvance safety system architecture. It acquires analog signals from field transmitters measuring and converts them into digital values for the safety controller.
Its role is to ensure that the safety controller receives accurate, timely, and validated analog data from the field and prevent any failure or inaccuracy at the input stage can compromise the entire safety loop.

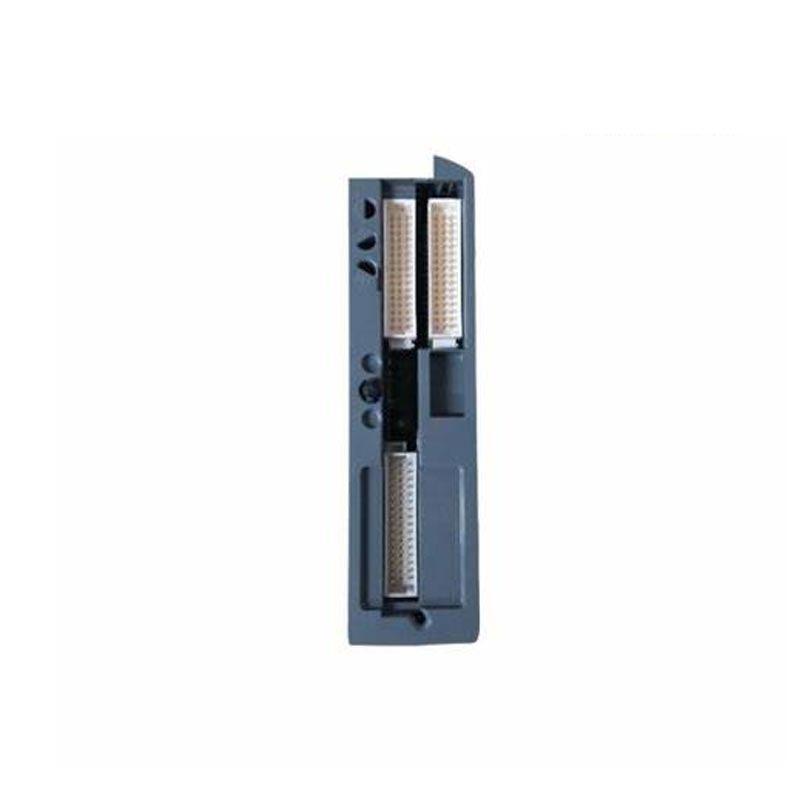

The ICS Triplex T9432 is a 16-channel isolated analog input module designed for the Trusted® and AADvance SIS platforms. Each of the 16 channels is independently isolated from the others and from the system backplane.
1. Signal types supported:
Current: 4–20 mA (default), 0–20 mA
Voltage: 0–10 V, 1–5 V, ±5 V, ±10 V
RTD: Pt100, Pt1000
Thermocouple: J, K, T, E, R, S, B
2. Resolution and accuracy: 16-bit resolution with ±0.05% to ±0.1% full-scale accuracy.
3. Sampling and update rates: The module offers a 6 ms update interval in no-filter mode, with a maximum sampling rate of 100 kHz. In TMR configuration, scan times are approximately 2.656 ms.
4. Isolation: Channel-to-channel and channel-to-backplane isolation at ±1.5 kVDC withstand for 1 minute.
5. HART communication: The module supports HART pass-through, allowing diagnostic data retrieval from smart field devices without interrupting the analog measurement.
The module incorporates three independent processing slices. If one slice fails, the other two continue to operate, and the module maintains full functionality.
Signal types are software-configurable through the Trusted Toolset configuration software. Different field devices can be accommodated without hardware changes, reducing the need for multiple module types in inventory.
The ICS Triplex T9432 supports online replacement without system shutdown. Note that the slot should be placed in maintenance mode via software before removal to avoid triggering spurious alarms.
The module continuously monitors power supply integrity, signal quality, and internal circuitry. It detects open circuits, short circuits, over-voltage, under-range, and over-range conditions on each channel. Front-panel LEDs provide visual status indication for the module and each individual channel. An independent hardware watchdog automatically initiates a safe shutdown if a critical fault is detected.
When sourcing the ICS Triplex T9432, consider the following factors:
Confirm that the module is intended for your specific system. The module is designed for Trusted® and AADvance platforms. It may not be compatible with other ICS Triplex product lines.
The module provides 16 isolated channels. If your application requires fewer channels, the T9431 (8-channel version) may be a more cost-effective alternative.
The module requires a compatible termination assembly: T9831, T9832, or T9833. Ensure the termination assembly matches your field wiring configuration and safety integrity requirements.
The module supports current, voltage, RTD, and thermocouple inputs. Confirm that the module supports the specific signal types used in your field devices. For thermocouple inputs, verify that the module variant supports the specific thermocouple type (J, K, T, E, R, S, or B) required.
If your field devices are HART-enabled and you require remote diagnostics and asset management data, confirm that the HART pass-through functionality is enabled in your system configuration.
|
Brand |
ICS Triplex |
|
Country of Origin |
United States |
|
Module Type |
Regulator Module / Analog Input Module |
|
Voltage Range |
20 to 32 V DC |
|
Current Range |
100-400 A |
|
Weight |
Approx. 2 kg |
|
Form Factor |
Modular |
The ICS Triplex T9432 is deployed in industries requiring high-integrity analog signal acquisition with SIL 3 compliance:
Emergency shutdown systems, wellhead pressure and temperature monitoring, pipeline flow and level measurement, natural gas processing facilities.
Reactor temperature and pressure control, fire and gas detection systems, distillation column controls, catalytic cracking unit monitoring.
Boiler temperature and pressure monitoring, turbine vibration and bearing temperature measurement, burner management systems (BMS).
Blast furnace high-frequency TMR-linked valve control.
Critical process parameter monitoring in municipal and industrial treatment facilities.
The module's wide operating temperature range (–40°C to +70°C) supports outdoor installations, unheated shelters, and extreme climate conditions common in upstream oil and gas and remote power generation sites.
A: No. Emerson discontinued this model. However, tested surplus stock remains available through specialized suppliers including Yueyang Tongtu. Confirm availability and condition (new original vs. tested used) before ordering.
A: The T9432 provides 16 isolated analog input channels. The T9431 provides 8 channels and is suitable for applications with lower channel count requirements.
A: The module is compatible with T9831, T9832, and T9833 termination assemblies. T9832 provides dual modular redundancy termination, while T9833 provides triple modular redundancy termination for higher safety integrity levels.
A: Yes, the module supports hot-swap. However, the slot should be placed in maintenance mode via the configuration software before removal to avoid triggering spurious alarms.
A: The module offers comprehensive self-diagnostics including power supply monitoring, signal integrity checking, open/short circuit detection, out-of-range detection, and independent hardware watchdog with automatic safe shutdown on critical faults. Front-panel LEDs provide visual status indication.
A: Yes. The module supports HART pass-through, allowing diagnostic data retrieval from smart field devices. HART data can be used to monitor device conditions and supply module diagnostics.
A: For SIL 3 compliance, a full-scale accuracy check is recommended annually. Calibration records should be retained for safety audits.
|
