Bently Nevada 125840-02

The Bently Nevada 125840-02 is a power entry module used with the 3500 series monitoring rack. It is associated with RIM I/O functions and provides a manual way for maintenance personnel to control relay states. This is useful during equipment startup, logic testing, or abnormal operating conditions when direct intervention is preferred over software configuration. Yueyang Tongtu supplies this module as original equipment, with pre-shipment inspection and compatibility confirmation available for industrial buyers.

This module is commonly installed in petrochemical compressor monitoring systems, thermal power plant TSI systems, and hydro turbine supervisory equipment. Yueyang Tongtu maintains regular inventory of this module and supports sourcing for discontinued part numbers.

Product Identification

Technical Specifications

Hardware and Protection Design

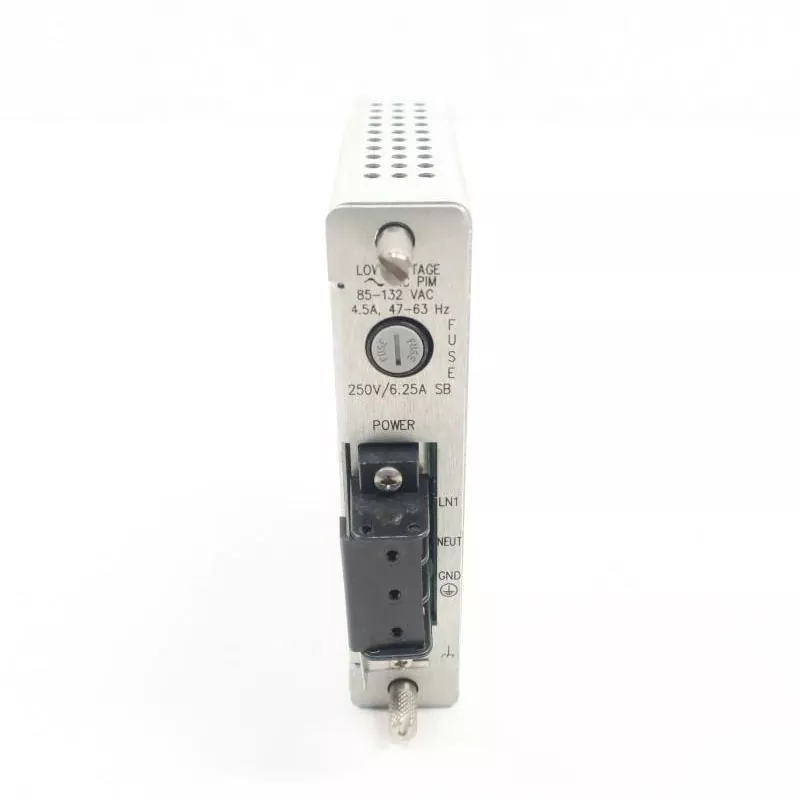

The module includes a front panel power switch and a fuse holder. If an incoming voltage surge occurs, the fuse opens to protect the downstream circuits. The rear contacts are gold-plated to help maintain reliable electrical connection after repeated rack insertion.

Please check the rack slot for dust or contamination before installation. Clean contacts help ensure stable power transfer.

Application Scenarios

The Bently Nevada 125840-02 is typically used as the input interface for the 3500/15 power module. It appears in systems such as:

● Large compressor trains in petrochemical plants

● Turbine supervisory instrumentation in thermal power stations

● Hydro turbine monitoring units

● Other 3500 series installations requiring a power entry interface

Comparison with Related Models

The following table compares the 125840-02 with commonly referenced models. The information is based on typical configurations and should be verified against the specific rack version.

Interchangeability note: The 125840-02 and 125840-01 serve similar functions, but revision differences may affect fit or performance in certain rack versions. The 3500/15 is a separate power supply module and cannot replace the power entry module. Always confirm rack model and backplane version before substitution.

Compatible Rack Models and Companion Modules

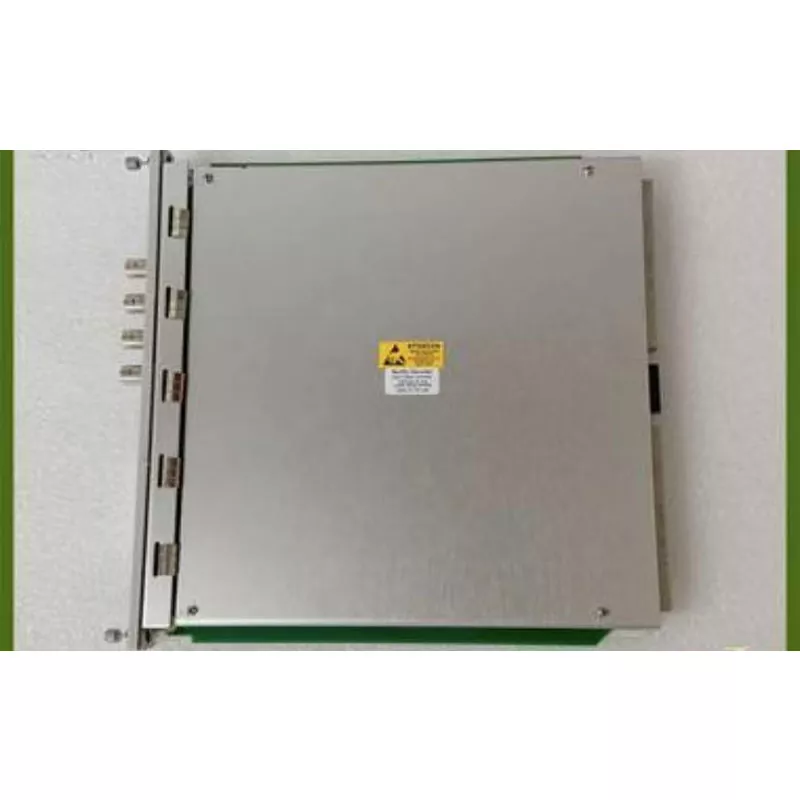

The 125840-02 is designed for the Bently Nevada 3500 series. Commonly used rack models include:

● 3500/05 system rack

● 3500/06 system rack

● 3500/20 frame interface module

Companion modules often installed in the same system:

If you are building a full rack or replacing multiple modules, we can provide a compatibility check based on your rack configuration drawing.

Packaging and Shipping

● Sealed in an anti-static bag to protect against moisture and static.

● Placed in a custom foam tray to minimize movement during transport.

● Packed in a five-layer corrugated outer box with a fragile label.

● Suitable for sea or air freight. Pins and fuse holder are checked before dispatch and documented with photos.

Frequently Asked Questions

Q1: How do I confirm the 125840-02 will fit my 3500 rack?

A: Send the rack model and a clear photo of the existing module. We will check the backplane slot and interface version before shipping.

Q2: Is this module new or refurbished?

A: Default stock is new original equipment. If only unused or refurbished units are available, we will inform you and provide photos before order confirmation.

Q3: What should I do if the fuse blows frequently after replacement?

A: This may indicate an incoming voltage problem or a short circuit downstream. We can provide basic troubleshooting steps, but the root cause should be checked by a qualified technician.

Q4: Can you provide the pinout or wiring diagram?

A: We can provide basic pinout information if available. Detailed wiring should follow the official Bently Nevada manual for your rack version.

Q5: What warranty is provided?

A: Standard warranty is 12 months for non-user-caused failures. Replacement or repair is handled case by case.

Q6: Can the Bently Nevada 125840-02 replace the 125840-01?

A: In many rack revisions, the 125840-02 can be used as a substitute for the 125840-01. However, the backplane version and wiring connection should be checked before replacement.

Q7: Is the 125840-02 the same as the 3500/15?

A: No. The 125840-02 is a power entry module, while the 3500/15 is a power supply module. They work together but are not interchangeable.
