Bently Nevada 330780-50-00

If you need a supplier capable of providing a stable supply of the Bently Nevada 330780-50-00, please contact Yueyang Tongtu; we are a professional distributor with ample stock and timely delivery.

What is the Bently Nevada 330780-50-00?

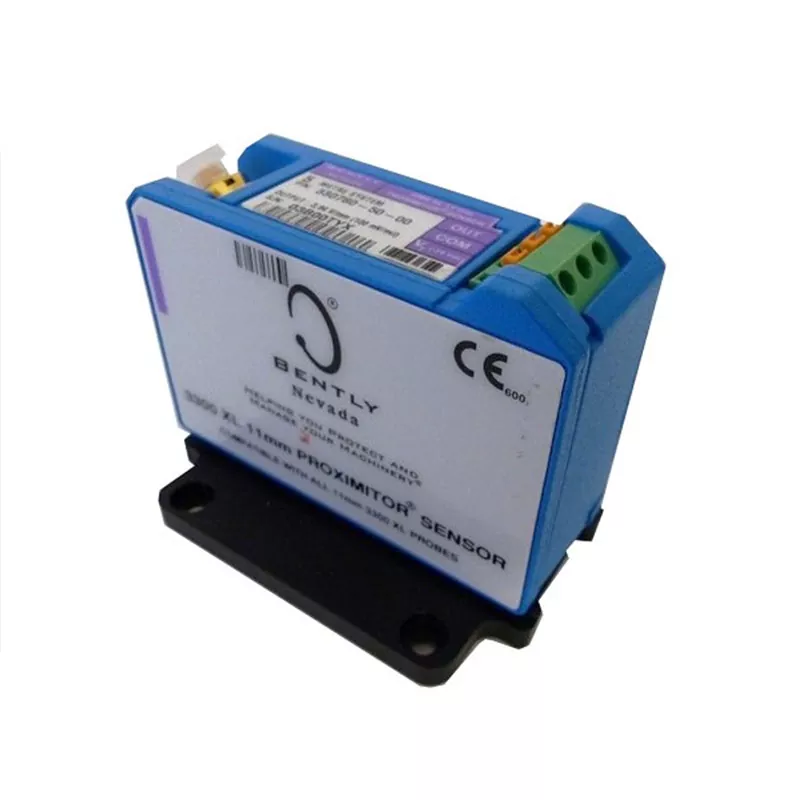

Bently Nevada is a benchmark brand in the field of condition monitoring for rotating machinery. The 330780-50-00 is a Proximitor sensor belonging to the 3300 XL 11 mm Eddy Current Proximity Transducer System and features a reverse-mount configuration.

It serves as a front-end sensing node for industrial rotating machinery health monitoring systems, linearly converting shaft displacement and vibration signals, captured by the probe, into standard electrical signals that the monitoring system can process.

Product Specifications

How the Bently Nevada 330780-50-00 Works

Step 1: Generation of a High-Frequency Electromagnetic Field

The sensor tip contains a precision coil, and the proximitor supplies a high-frequency alternating current (AC) to it.

As the current flows through the coil, it generates a high-frequency alternating magnetic field around the probe tip.

Step 2: Induction and Formation of Eddy Currents

When the target metal object approaches the magnetic field zone at the probe tip, the alternating magnetic field penetrates the metal surface, inducing closed-loop currents known as eddy currents.

Step 3: Energy Loss and Impedance Change

The eddy currents on the metal surface generate their own opposing magnetic field, which counteracts the original magnetic field.

When the metal shaft moves closer to the probe → eddy currents intensify, energy loss in the probe coil increases, and the coil's high-frequency impedance (or equivalent inductance) decreases.

When the metal shaft moves away from the probe → eddy currents weaken, energy loss in the coil decreases, and the coil impedance recovers.

Step 4: Signal Demodulation and Linear Voltage Output

The proximitor circuitry detects changes in coil impedance or amplitude, then demodulates and amplifies the signal.

The proximitor converts this change into a DC/AC voltage signal that is strictly proportional to the gap distance; this signal is then transmitted to a Bently Nevada 3500 or 3300 rack monitoring system for real-time vibration and displacement data analysis.

Key Application Scenarios

1. Energy and Power Industry

Steam Turbines and Generators: Used for real-time monitoring of rotor shaft vibration, axial displacement, differential expansion, and eccentricity.

Fans and Pumps: Monitors absolute vibration of casings and bearing housings to timely detect issues such as rotor imbalance and misalignment.

2. Oil, Gas, and Petrochemicals

Compressors and Pumps: Proximitors are used to monitor the shaft system conditions of centrifugal compressors, reciprocating compressors, and large booster pumps.

Critical Valve Control: Used for precise control of valve opening and position monitoring in high-temperature pipelines.

3. Iron and Steel Metallurgy and Heavy Manufacturing

Rolling Mills and Blast Furnace Equipment: Thanks to its RFI/EMI protection capabilities, the Bently Nevada 330780-50-00 maintains signal stability in complex electromagnetic environments characterized by dense variable-frequency drive (VFD) installations and frequent start-stop cycles of large motors.

Heavy Machinery: Real-time monitoring of the position and vibration of moving parts to optimize production processes.

4. Other Critical Industrial Sectors

Papermaking and Printing: Monitors vibration in high-speed paper machine drying cylinders and drive shafts.

Water Treatment and Environmental Protection: Applied to large sewage treatment pumps and flue gas emission monitoring fans.

Aerospace and Pharmaceuticals: Provides high-precision displacement and vibration monitoring support in precision manufacturing sectors that demand strict cleanliness and equipment reliability.

Why Choose Yueyang Tongtu?

Yueyang Tongtu has long specialized in the sales of imported industrial control and automation products, covering major brands such as Bently Nevada, ABB, Siemens, Honeywell, GE Fanuc, Foxboro, Triconex, Yokogawa, Schneider, HIMA, and Emerson.

Regarding Bently Nevada products, we have extensive experience supplying the 3300 and 3500 series, including monitoring modules, I/O modules, power supply modules, Proximitor sensors, programming cables, and related components.

We can verify products based on exact model numbers or part numbers provided by customers and assist in identifying the correct models for existing systems; we also maintain ample stock and inventory resources.

FAQ

Q: How does the 11mm system differ from the standard 8mm system?

A: The primary advantage is a wider measurement range. While the standard 8mm system has a linear range of approximately 2mm, the 11mm system extends to 4.0mm. Its sensitivity is also adjusted accordingly to 3.94 V/mm (100 mV/mil).

Q: What components are required for the Bently Nevada 330780-50-00?

A: It must be used as a complete set with a 3300 XL 11mm probe and the corresponding extension cable.

We recommend providing the probe and extension cable model numbers at the time of purchase so our technical team can verify system compatibility and prevent signal mismatches.

Q: What information should I provide before purchasing?

A: We recommend providing the following:

① Complete model number and suffixes (length, certification requirements);

② Model numbers of the matching probe/extension cable;

③ Installation method (e.g., compatibility with reverse-mount housings);

④ Required quantity and desired delivery date.

Yueyang Tongtu will use this information to determine the optimal solution and provide a quotation.
